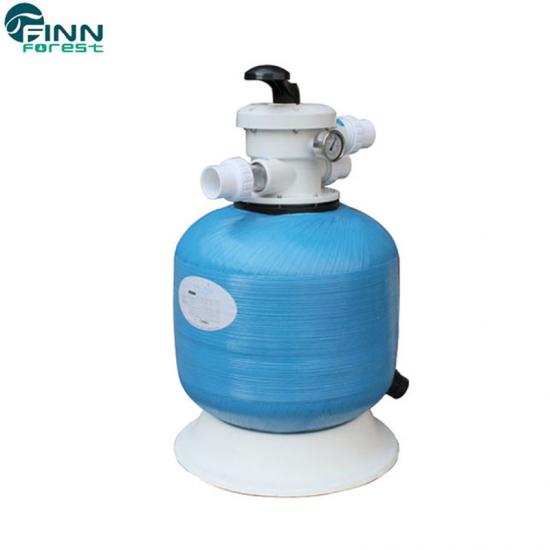

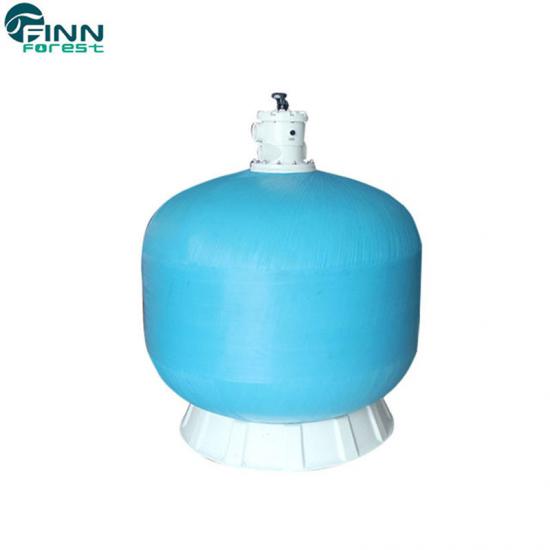

Top Mount Water Filtration Pool Sand Filter

Pool Sand Filter Factory
Pool Sand Filter Factory
Pool Sand Filter Factory
Pool Sand Filter Factory
Pool Sand Filter Factory
Pool Sand Filter Factory

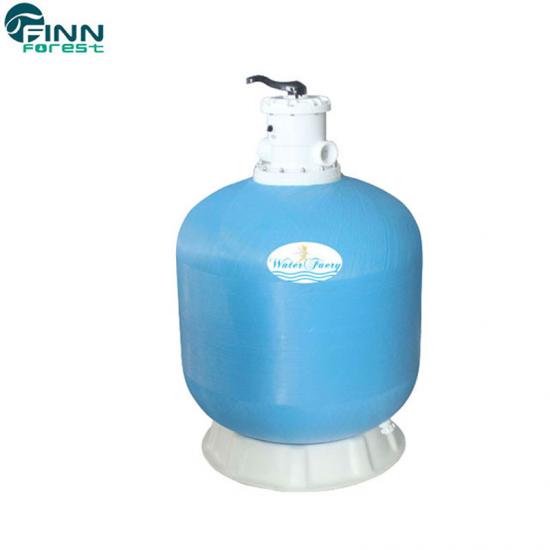

Top Mount Water Filtration Pool Sand Filter

Swimming pool water filter is filter system of whole swimming, it it very important for swimming pool. Filter inside can load activated carbon and sand, then pool water inside filter pass activate carbon and sind can clean water dirty thing.

  • Brand:

    Finn Forst
  • Item NO.:

    ST
  • Order(MOQ):

    1 Piece
  • Payment:

    T/T, L/C, Paypal, Cash, etc.
  • Product Origin:

    China
  • Shipping Port:

    Guangzhou or Shenzhen
  • Lead Time:

    Normally 7-15 working days after deposit or accordingly
  • Size:

    Customize
  • Material:

    Fiber Glass
  • Color:

    Customize
  • Logo:

    Customize
  • Application:

    Inflatable Pool, Spa Pool, Commercial Pool, Swimming Pool

Basic Info.

Model NO.
ST
Max Flow Rate
8-42 (M3/H)
Filtration Ares
0.13-1.13 (M2)
Port Size
1.5/2 Inch
Medium Material
Quartz Sand
Function
Filtration
Appliance
Household or Commecial Swimming Pool
Warranty
1 Year
Factory
Yes
Transport Package
Wooden Carton
Specification
CE, SGS, ISO
Trademark
Finn Forest
Origin
Guangzhou, China
Production Capacity
500sets/Month

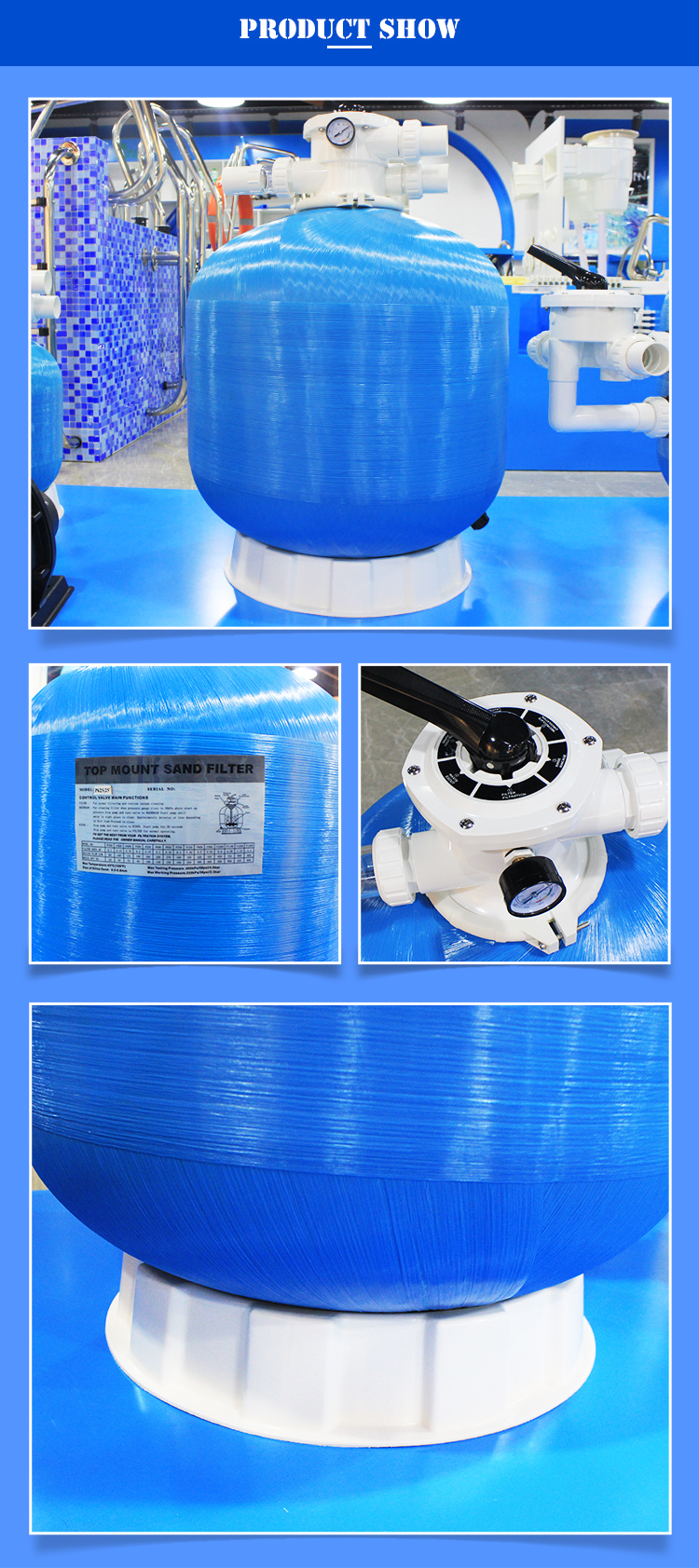

Pool water sand filter introduce

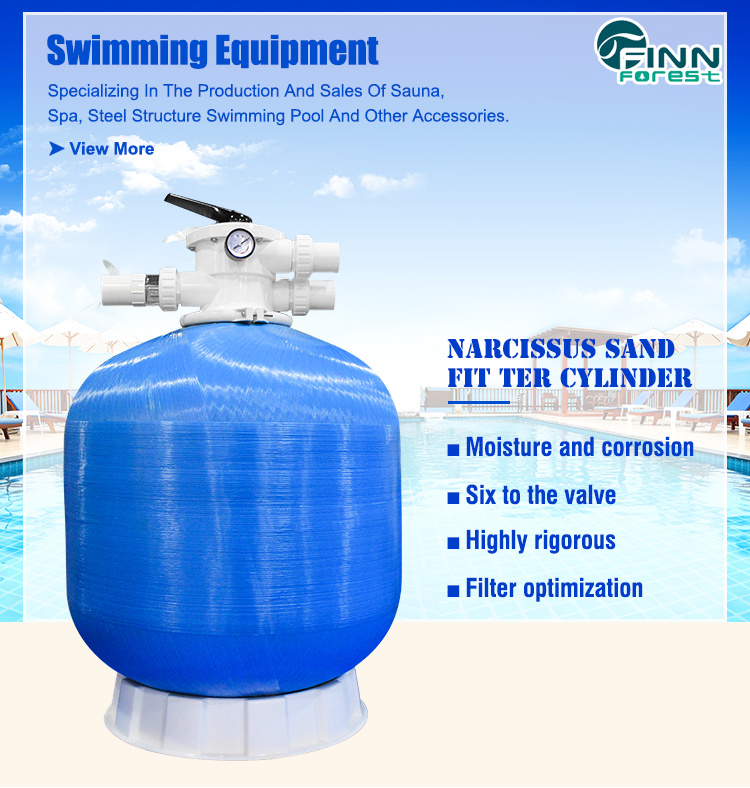

This model sand filter main material is Fiber glass, top mount, side mount and flamse type sand filter 3 way valve have 1.5 inch and 2 inch. Work pressure can reach 2.5 bar.
Fiberglass tip mount side sand filter lifetime can reach 10 year.

Pool sand filter diameter have 400mm - 1200mm.

The winding of fibreglass around the filter body makes the filter more durable,
deforming-proof, and resistance to chemical and corrosives.Uniquely designed distribution make a stable and even water flow to improve drainage system.All sand filters with pressure gauge.Easy to install, maintenance free.

1). It is made of fiberglass and high density polyethylene and its designed for
most domestic swimming pools or SPA pool.

2). Valve is designed to allow 360 degree rotation to simplify installation.

3). Easy-to-use water drain plug and multi-port valve lets you select any of the valves/filter operation

Ideal for:
1)  Hotels
2)  Motels
3)  Clubs
4)  Condos
5)  Apartments
6)  Homes

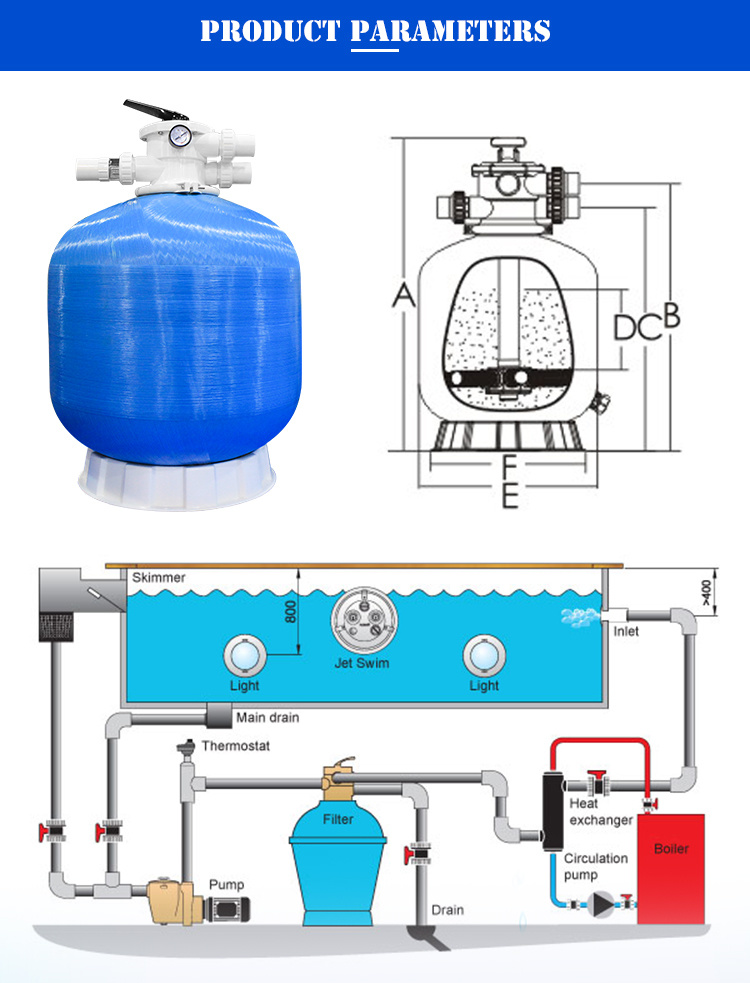

1.Specification

Model Diameter Pipe size Flow Filtration area Sand weight
(mm) (inch) (m³/h) (m²) (kg)
ST400 400 1.5 8 0.13 35
ST450 450 10 0.16 50
ST525 525 12 0.19 65
ST625 650 17 0.32 145
ST700 700 19 0.35 180
ST750 750 2 21 0.4 225
ST800 800 24 0.5 275
ST900 900 30 0.64 390
ST1000 1050 38 0.88 615
ST1200 1200 42 1.13 920

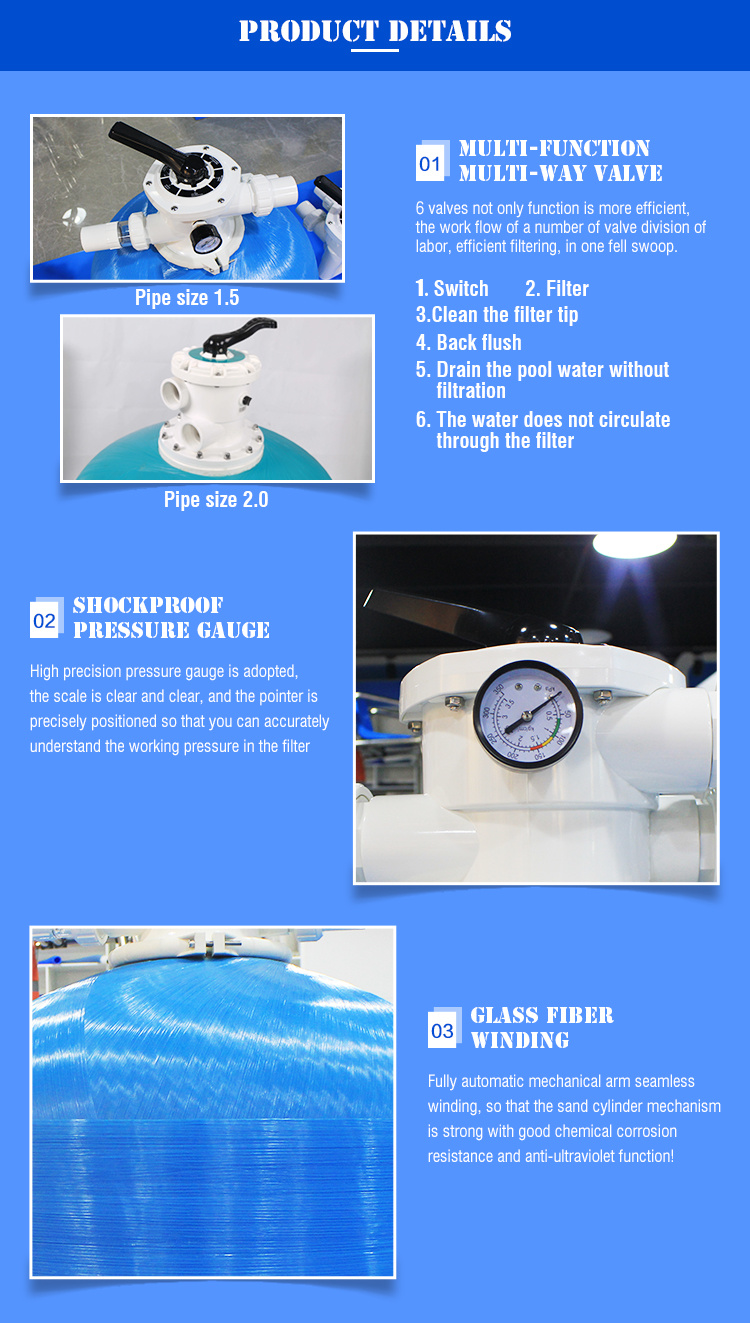

2.Feature
1). The winding of fibreglass around the the filter body makes the filter more durable,deforming-proof, and resistance to chemical and corrosives.

2). Uniquely designed distribution make a stable and even water flow to improve drainage system.

3). All sand filters with pressure gauge.

4). Easy to install, maintenance free.





Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Related Products

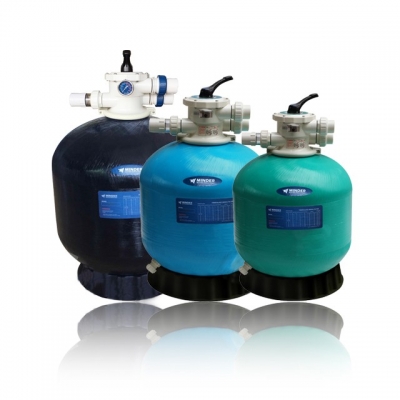

Glass Fiber Pool Accessories Sand Filter

swimming pool sand filter as a water treatment device is very hot sale. The swimming pool sand filter is made of fiberglass, which is of high quality. Quartz sand filter is one of the most popular pool filters

Learn More

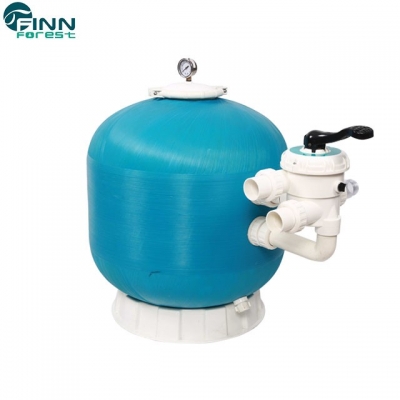

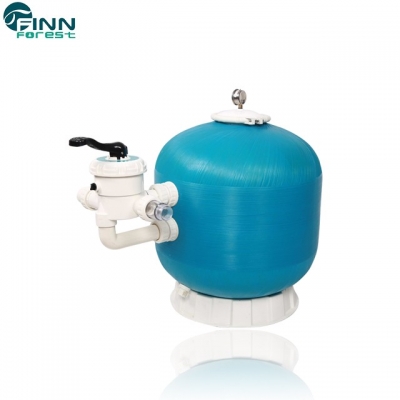

Side mount pool sand filter

Side mount sand filter is constructed by the latest Engineering Technology. The improvement of flowability provides an extra pure water filtration. Tank diameter ranging from 800mm to 2200mm, side mount sand filter is mainly used for large filtering system. It is large flow treatment capacity and small occupied space are suitable for the large swimming pool and water park.

Learn More

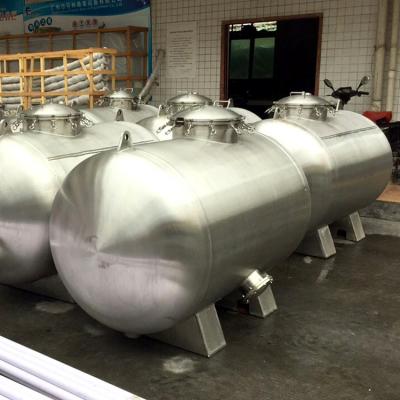

Large horizontal pool sand filter

Horizontal pool sand filter have been using the latest pool filter technology which is suitable for many different weather conditions and have reached many different market standards. The filters are durable, anti-corrosive, UV-resistant and user-friendly. The sand filters are applicable for use in all types of pools such as in-ground pools, in-ground spas, as well as other water features.

Learn More

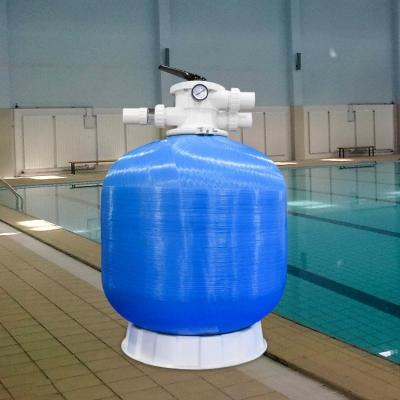

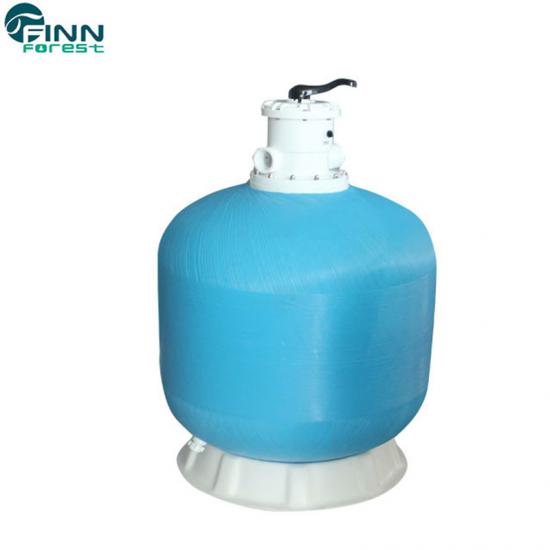

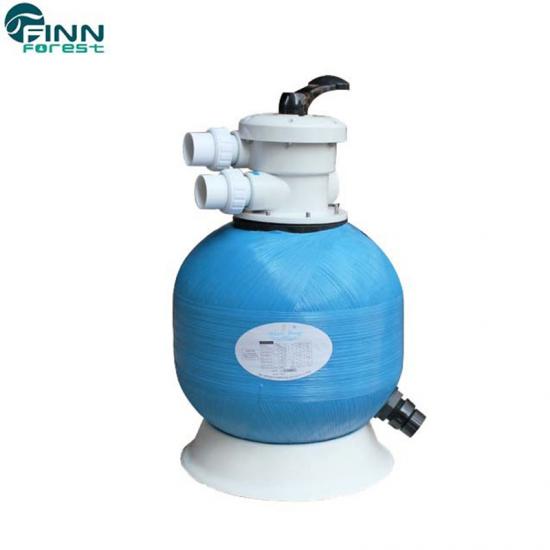

Top mount pool sand filter

Pool sand filter has uniquely designed distribution make a stable and even water flow to improve drainage system, easy to install, maintain free.

Learn More
pool filter

The Finn Forst 30-Inch Side-Mount Pool Sand Filter is molded of corrosion-proof material for all-weather durability and long-lasting performance

Learn More
China Supplier Automatic Pressure Pool Sand Filter

The pool sand filter is mainly made of advanced glass fiber and polyester, so as to ensure that the Perry filter has a firm structure, is not easy to wear and is durable. The six-position valve of the filter can be used for six different procedures, and it is easy to operate. It can be used with a variety of filter materials, such as filter sand, activated carbon and resin. Especially suitable for water purification, sewage treatment, swimming pools, fish ponds, massage pools, etc.

Learn More

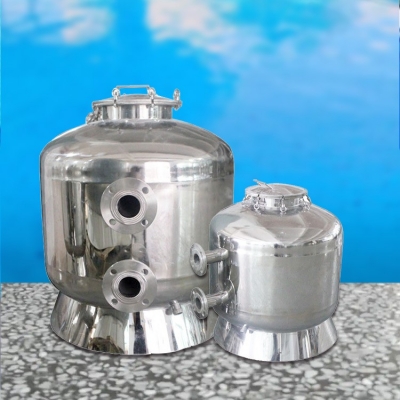

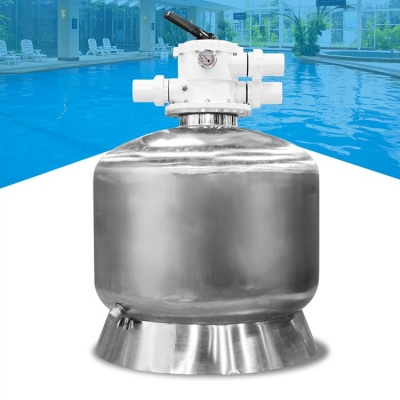

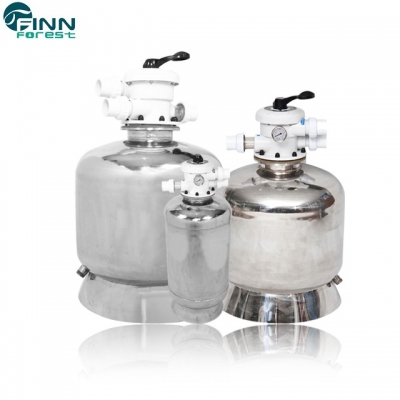

Factory Supplier Top Mount Pool Sand Filter For Sale
