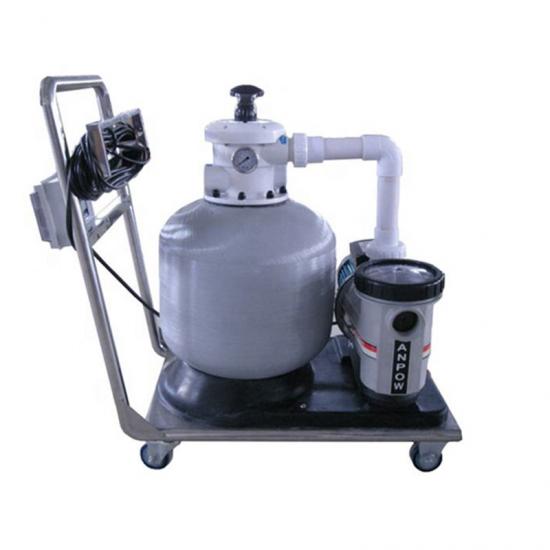

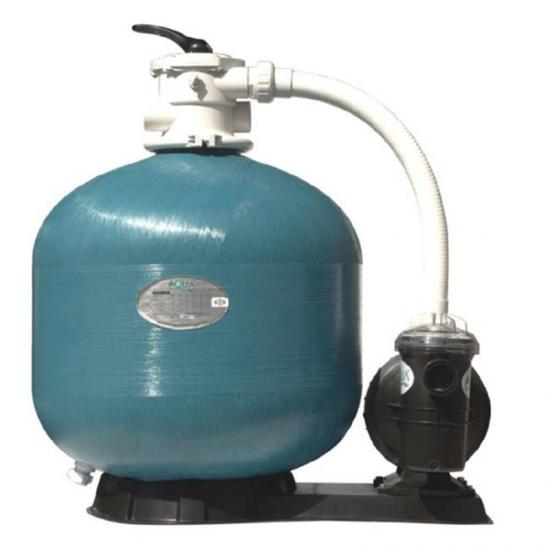

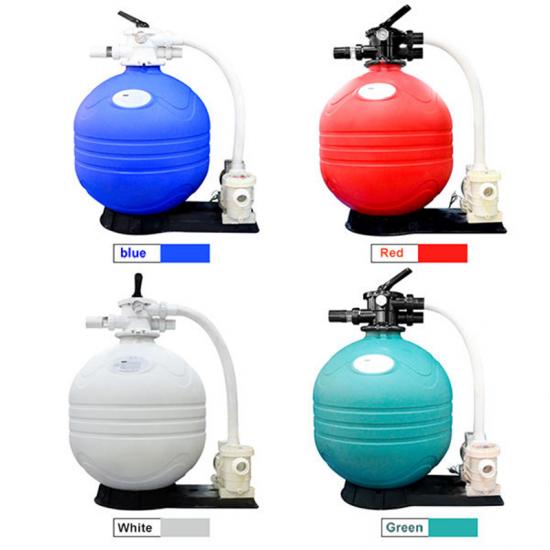

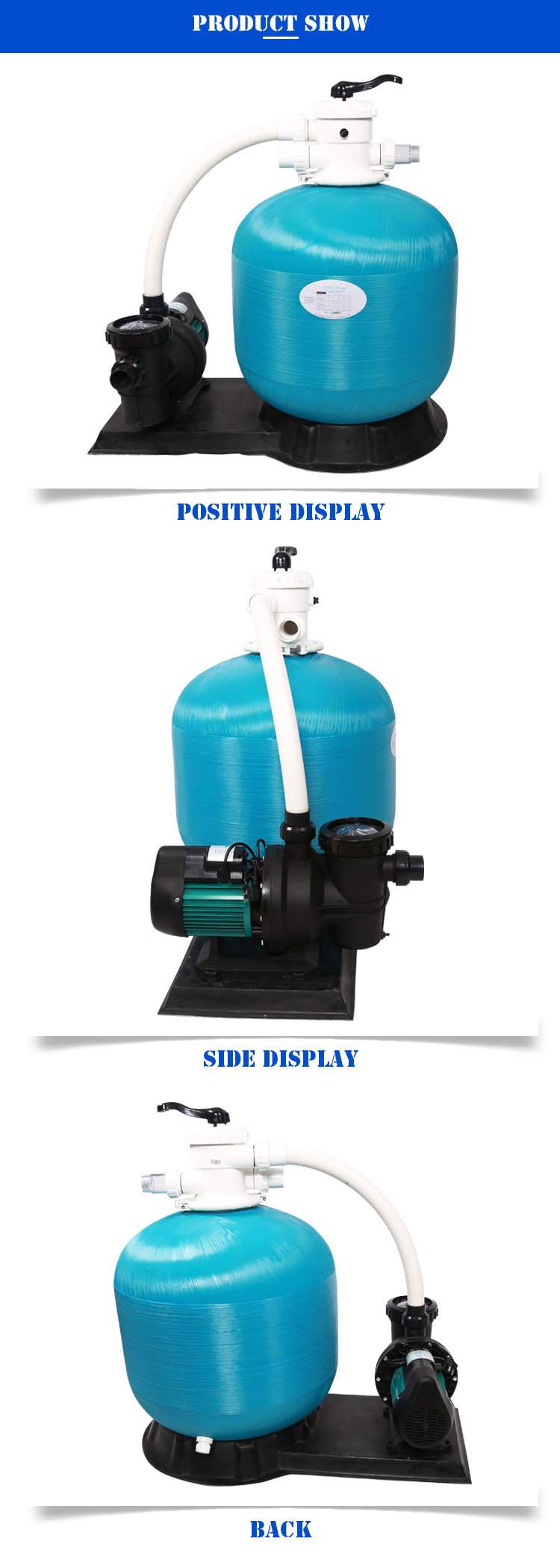

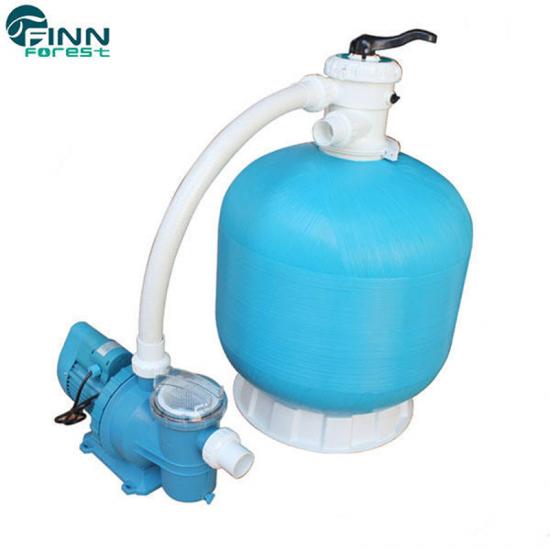

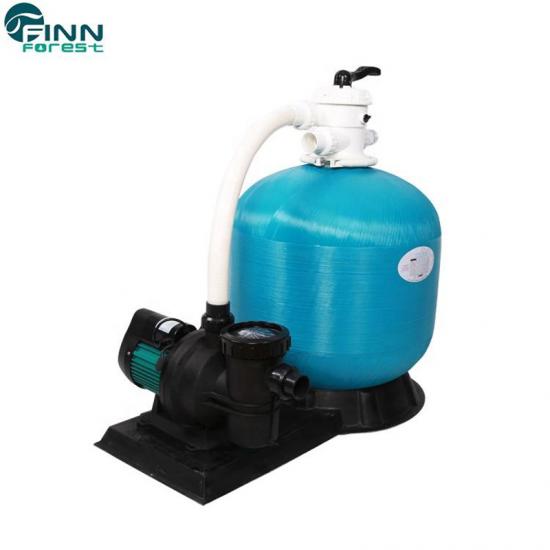

The Series pool filter with pump features an integral top diffuser that evenly distributes unfiltered water over the sand media bed in a cascading, umbrella-like pattern.
Brand:
Finn ForstItem NO.:
Swiming pool equipmentOrder(MOQ):
1 SetPayment:
T/T, L/C, Paypal, Cash, etc.Product Origin:
ChinaColor:
Blue/greyShipping Port:
GuangzhouLead Time:
Normally 7-15 working days after deposit or accordinglyMaterial:
FiberglassLogo:
CustomizeApplication:
Simming pool, spa pool, indoor poolSuperior filtration from the inside out. This allows the greatest filtration possible from every square inch of sand. Then the self-cleaning under-drain assembly, with its 360 degree slotted laterals, provides a fast, balanced flow of clear water back to the pool while allowing for more thorough backwashing. Best of all, full-flow technology reduces your energy costs because the filter operates for shorter periods.

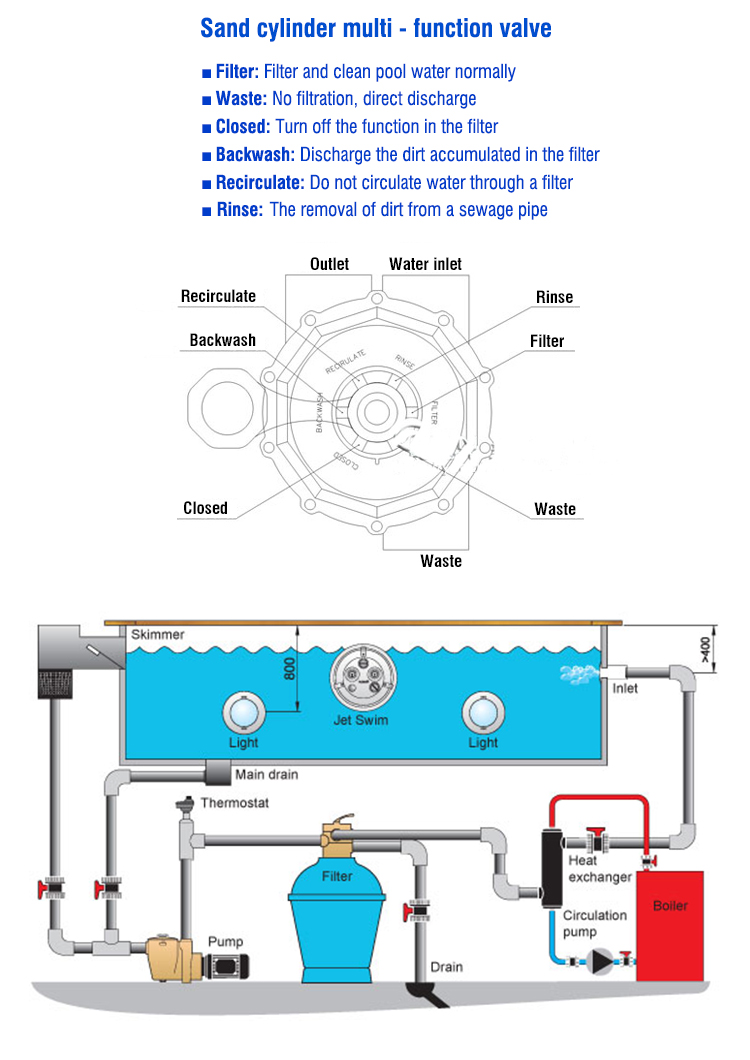

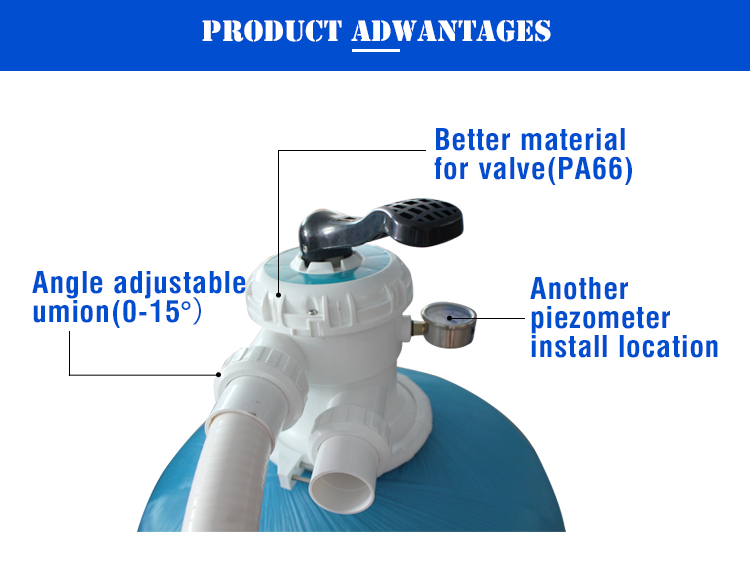

Six-position valve puts you in control. The patented, multi-port control valve was designed with six pool filter positions. An easy-to-use lever-action handle lets you quickly dial any function.
Long-lasting convenience. You can easily access the Series pool filter with pump assembly for simple servicing via the unique folding ball joint in the laterals. A corrosion-proof housing protects the filter from severe weather for years to come.

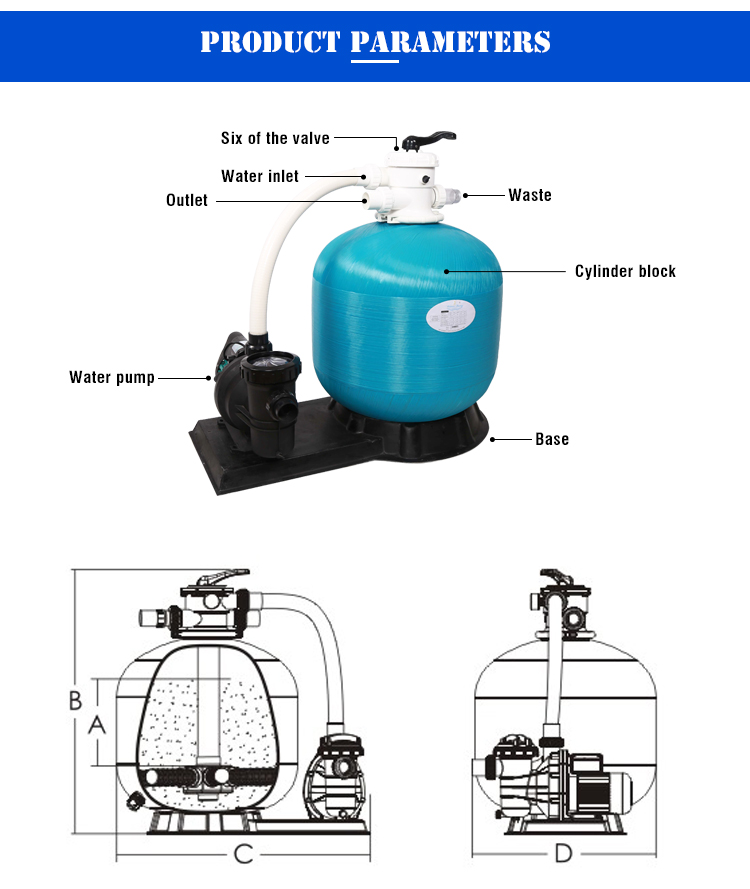

Water filtration technical Characteristics:
| Model No. | Filter type | Pump type | Valve connections | Flow rate | Sand | A(mm) | B(mm) | C(mm) |
| FSF 350-6W |
V 350 |
SS033 |
1.5’’/50mm | 4.32 cbm/h | 20kg | 555 | 680 | 160 |
| FSF 400-6W | V 400 | SS050 | 1.5’’/50mm | 6.48 cbm/h | 35kg | 760 | 759 | 175 |
| FSF 450-6W | V 450 | SS075 | 1.5’’/50mm |
8.1 cbm/h |
45kg | 760 | 813 | 210 |
| FSF 500-6W | V 500 | SS100 | 1.5’’/50mm | 11.1 cbm/h | 85kg | 760 | 856 | 235 |
| FSF 650-6W | V 650 | SS150 | 1.5’’/50mm | 15.6 cbm/h | 145kg | 760 | 961 | 300 |

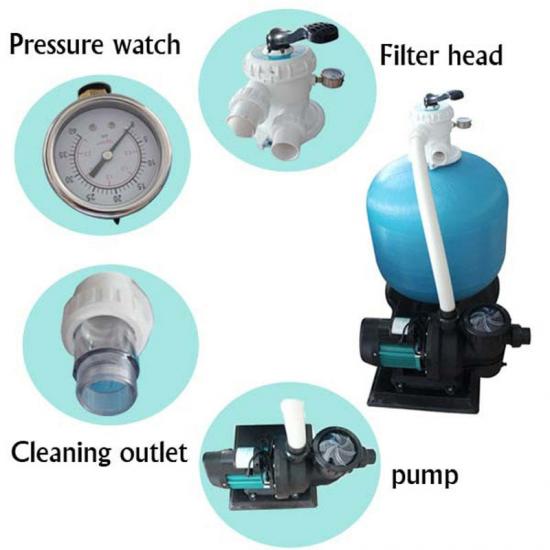

The feature of a swimming pool sand filter and pump:
1) Unique and advanced design ensures fast draining and stabilizes water flow
2) The sand filter comes with a precise pressure gauge
3) Efficient multi-lateral underdrain assembly and self-cleaning laterals give totally balanced flow and backwashing
4) It is easy to install and to maintain
5) The outlet turbidity is less than 2FTU
