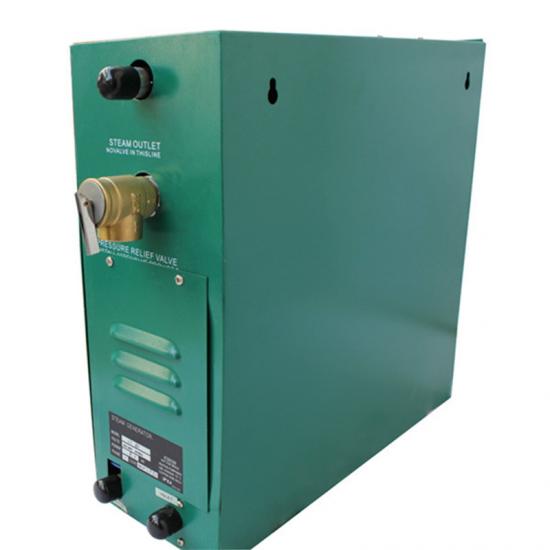

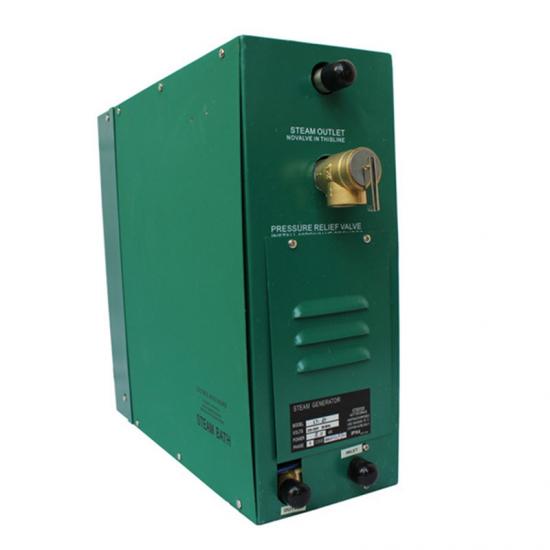

Fanlan steam generator is a kind of intelligent steam engine. He has a shortage of water protection, prevent dry heating, pressure protection, arbitrary adjustable within 35 to 55 ºC temperature, automatic heat preservation, regular shutdown, automatic drainage function.
Brand:
Finn ForstItem NO.:
FANLANOrder(MOQ):
1 PiecePayment:
T/T, L/C, Paypal, Cash, etc.Product Origin:
ChinaShipping Port:
Guangzhou or ShenzhenLead Time:
Normally 7-15 working days after deposit or accordinglySize:
CustomizeColor:
GreenMaterial:
Galvanized SheetLogo:
CustomizeApplication:
Steam Bath RoomFunction:
Commercial
Produce steam for wet steam rooms. Choose different model according to the size of the steam rooms. Should to supply water and electric power when install it. And a Leakage protection switch is needed for installation.
1. Function
1). With water shortage protection, prevent dry heating.
2). the tank pressure safety protection.
3). The temperature at 35 and 55 ºC in arbitrary adjustable, automatic heat preservation.
4). Regular shutdown.
5). 1 to 60 minutes time is adjustable.
6). ST - 135-0.5 h, 1 h, 2 h and not four files regularly. (factory setting 1 h)
7). The lighting function.
8). automatic drain off
9). Stop automatic drainage
10). hair heat pipe end protection switch. Let hair heat pipe for longer service life.
Model | Power(kw) | Voltage | Current (A) | Phase(N-) | Room size(m³) | Wire | Control Type |
(V) | (NXmm²) | ||||||
FAN-40 | 4 | 220/380 | 18.2/6.1 | 1/3 | 2.5-5 | 3*4/5*1.5 | Control in side/ out side |
FAN-60 | 6 | 220/380 | 27.1/9.1 | 1/3 | 6-7 | 3*6/5*2.5 | |
FAN-75 | 7.5 | 220/380 | 34.1/11.4 | 1/3 | 9-10 | 3*6/5*2.5 | |
FAN-90 | 9 | 220/380 | 41/13.7 | 1/3 | 10-12 | 3*10/5*4 | |
FAN-105 | 10.5 | 220/380 | 47.7/15.9 | 1/3 | 12-15 | 3*10/5*4 | |
FAN-120 | 12 | 220/380 | 54.5/18.2 | 1/3 | 14-17 | 3*10/5*4 |
01. Water quality: never use low quality water containing scale, high acid or alkaline, it's better to use disposed" soft water" or running water.
02. For safety reason, the steam generator must be securely grounded.
03. Keep inflammable and explosive materials away from installationsite.
04. In order to keep steam transfer-ring pipe smooth, never install sluidevalve in the steam generator outlet pipe.
2. Steam room heater accessories & effect
3. How to choose a suitable steam generator:
1). Calculate the room's volume(Length*Width*Height) in meter.
2). The power of the steam generator is equal to the CBM of the room, (eg: a 8m³ room should use a 8kw steam generator)
3). Usually, the machine power should be high than the volume number if the volume is not an integer, so that the room can reach the temperature in short time and it's good for the machine having a longer life span.
